Obsidian Source Code Plugin

中文文檔

Technical Support AntV X6

Functionality

• Parse the code blocks in Obsidian notes, draw the graphs of the method call links, and keep the code blocks in the canvas for easy viewing

How to use

1. In the code comments section of Markdown's code block, write the relevant information with the keyword

Supported keywords	Effect
@class	Name of the class corresponding to the method
@function	Method Name
@call	Call the related method, multiple methods are supported. Format: class name @ method name

Example

/**
 * Register metadata string.
 *
 * @class ShenyuClientHttpRegistryController
 * @function registerMetadata(@RequestBody final MetaDataRegisterDTO metaDataRegisterDTO)
 * @call RegisterClientServerDisruptorPublisher @ publish(final DataTypeParent data)
 *
 * @param metaDataRegisterDTO the meta data register dto
 * @return the string
 */
@PostMapping("/register-metadata")
@ResponseBody
public String registerMetadata(@RequestBody final MetaDataRegisterDTO metaDataRegisterDTO) {
    // 通过 Publisher 注册 元数据对象
    publisher.publish(metaDataRegisterDTO);
    return ShenyuResultMessage.SUCCESS;
}

/**
 * Register metadata string.
 *
 * @class RegisterClientServerDisruptorPublisher
 * @function publish(final DataTypeParent data)
 *
 * @param metaDataRegisterDTO the meta data register dto
 * @return the string
 */
@Override
public void publish(final DataTypeParent data) {
    // 获取 DisruptorProvider
    DisruptorProvider<Collection<DataTypeParent>> provider = providerManage.getProvider();
    // 调用 DisruptorProvider 的 onData 方法，发送数据
    provider.onData(Collections.singleton(data));
}

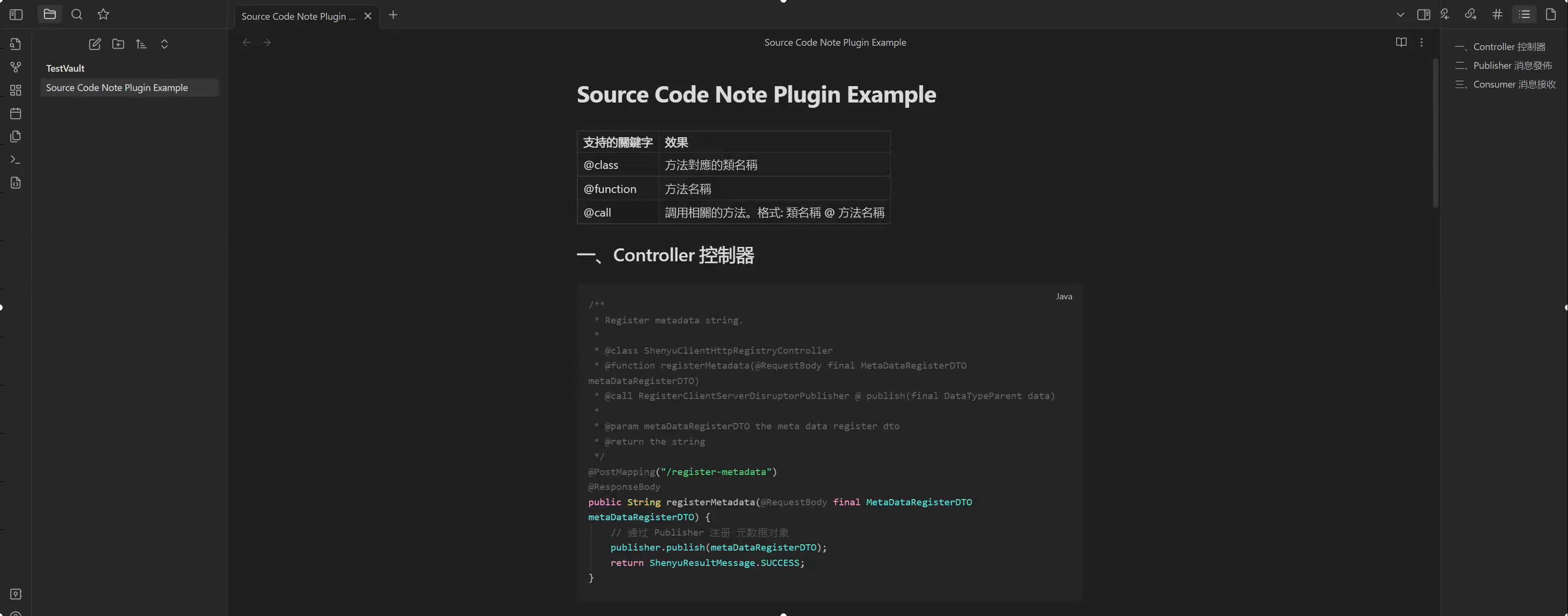

2. Click the button to the left of Obsidian to open the canvas
